Technical data
Pump
Dimensions: 82(L) x 82(W) x 40(H)mm
Materials: PPS, PC, pure copper, pure aluminum
Speed: 1,000~2,500 RPM ±10%
Bearing type: Ceramic bearing
Water flow: Min. 0.7L/min Max. 0.85L/min
Rated voltage: 12V
Rated current: 0.35A
Power consumption: 4.2W

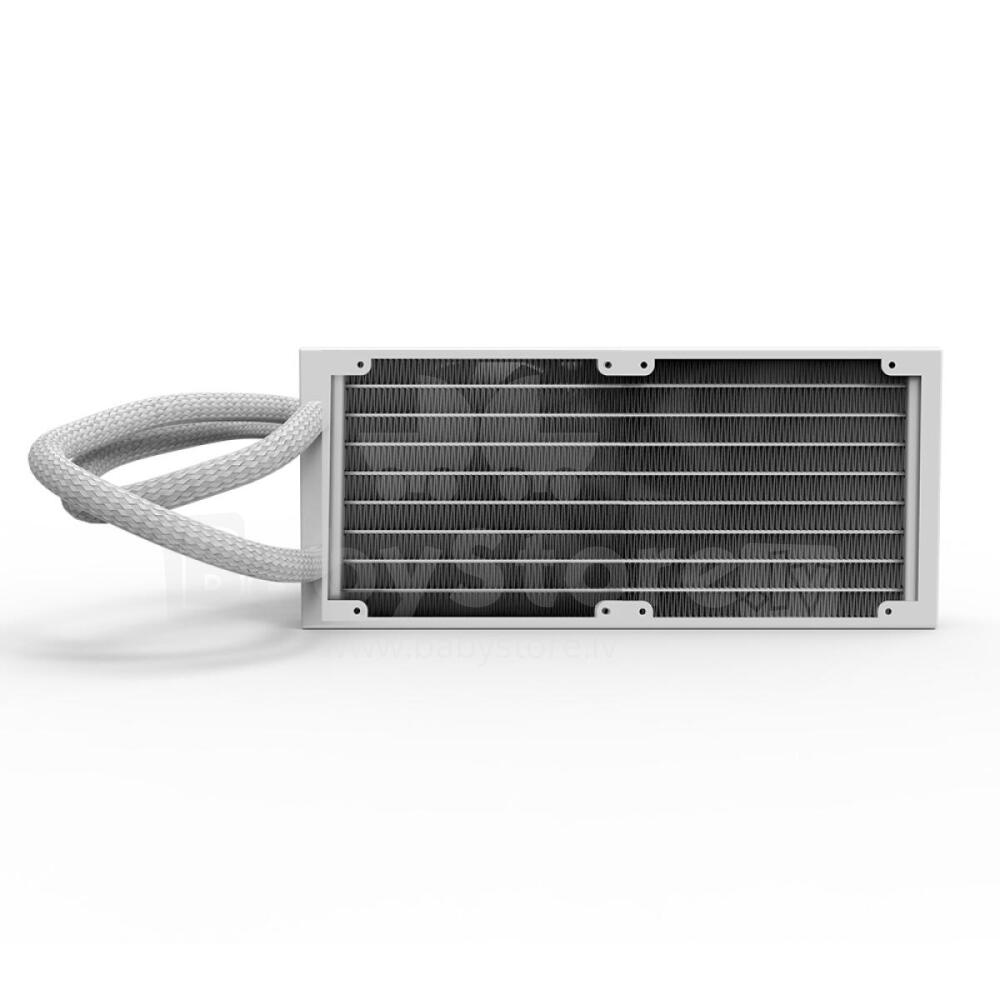

Radiator
Dimensions: 120 x 278 x 27(H)mm
Materials: Pure aluminum
Fan
Dimensions: 120 X 120 X 25(H)mm
Bearing type: Hydro bearing
Speed: 700~1,800 RPM ±10%
Max. noise level: 28dB(A)±10%
Max. air pressure: 1.43mmH2O±10%
Life span: 50,000 hours
Connector type:
Fan: 4-pin (PWM Control)
LED: 3-pin (Addressable RGB)
Control method: PWM control
Rated voltage:
Fan: 12V DC
LED: 5V DC
Rated current: 0.35A
Power consumption: 4.2W
Thermal compound: ZM-STC8
Socket compatibility:
Intel Socket: LGA 1700 / 1200 / 115X / 2066 / 2011-V3 / 2011
AMD Socket: AM5 / AM4
| Store | Size | Quantity | |
|---|---|---|---|
| Warehouse (5-7 working days) | 12 pcs. |
Quantity is FYI only, goods could be on reservation
